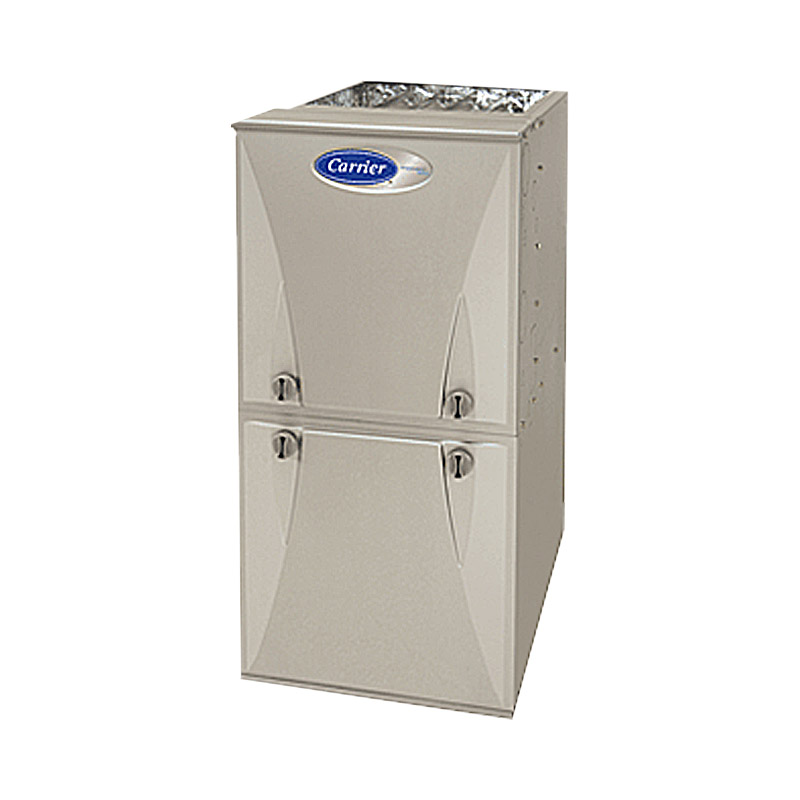

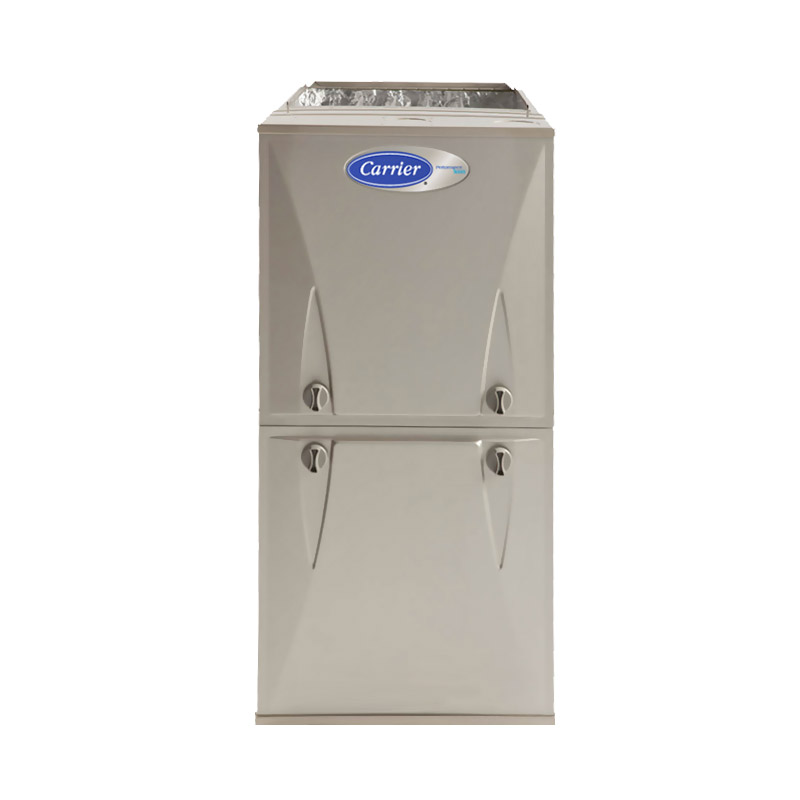

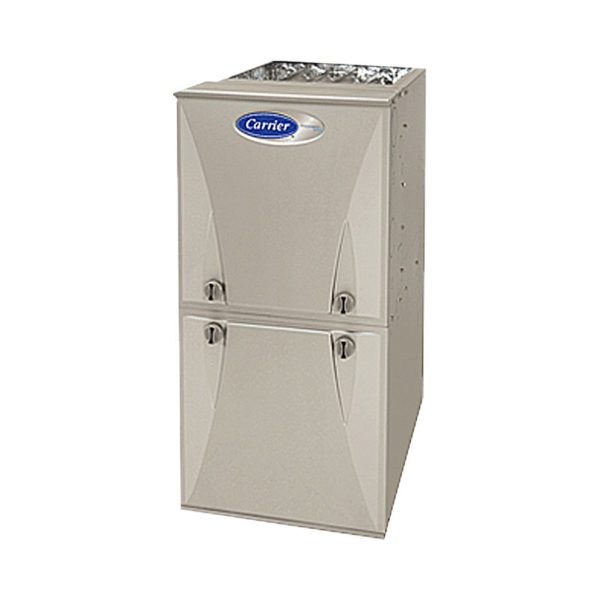

PERFORMANCE 96 GAS FURNACE 59TP6

Supported by the Performance Edge® thermostat and a variable-speed blower motor, this furnace will run in low stage up to 90% of the time. Longer, low-stage run times give you better energy efficiency, better temperature control and increased comfort. It also assures you quieter performance.

Variable-speed blower operation also aids other system components and can help make your air conditioning system more efficient and improve summer dehumidification.

Additionally, SmartEvap™ technology which periodically stops the fan in “Constant ON” mode, gives cooling condensation time to drain away to prevent rehumidification. SmartEvap can reduce humidity by up to 10%.

  • Up to 96.7% AFUE heating efficiency
  • Two-stages of heat for economical operation
  • Multi-speed, high-efficiency, ECM blower motor enhances comfort
  • Ideal Humidity System® technology capable to aid heat pump or air conditioner summer dehumidification
  • SmartEvap™ technology works in concert with your cooling system to aid summer dehumidification
  • ComfortFan™ technology allows fan-speed choices in “Constant ON” mode
  • Comfort Heat Technology® feature intelligently stages heating cycles to reduce temperature swings and improve efficiency
  • Fully insulated cabinet
  • Advanced temperature control
  • Includes air filter cabinet
  • 10-year parts limited warranty
  • Lifetime heat exchanger limited warranty
  •
EFFICIENCY
  • Up to 96.7% AFUE
  • Select sizes meet ENERGY STAR® qualifications
PERFORMANCE
  • Low stage operation up to 90% of time for quiet, energy-efficient operation
  • Allows choices of “constant ON” fan speed operation1
  •  Hybrid Heat® compatible
  • Year-round humidity management when installed as part of complete Performance system with humidifier
  • Can help boost cooling SEER efficiency when matched with appropriate cooling system components

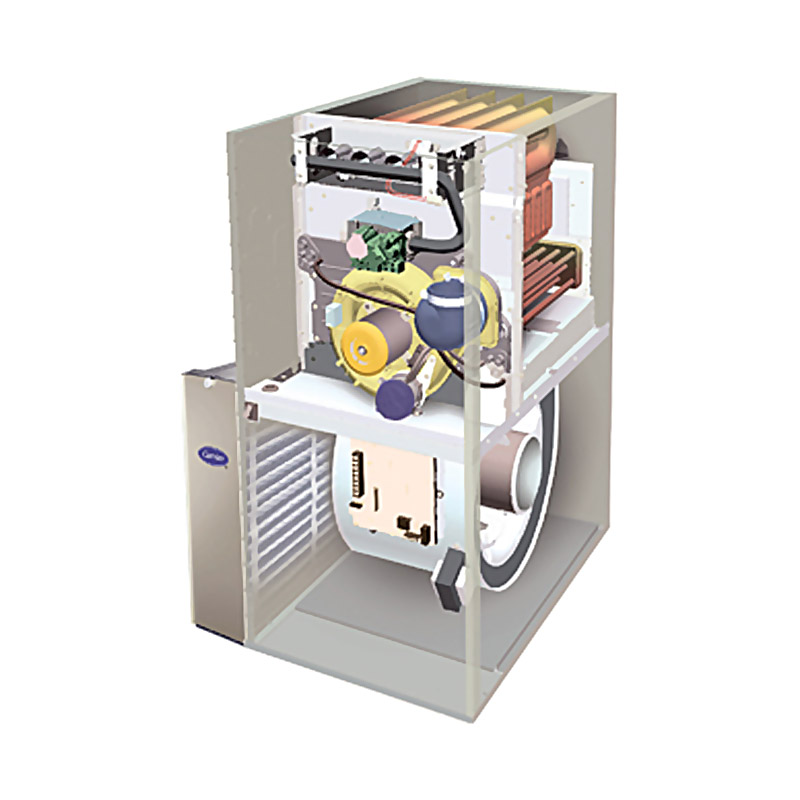

TECHNOLOGY
  • Two-stage gas valve
  • Variable-speed, ECM blower motor
  • Pilot-free, hot surface PowerHeatTM ignition
  • Two-speed inducer motor
  • Aluminized steel clamshell-style primary heat exchanger
  • Stainless steel fin-and-tube design secondary heat exchanger
  • Sound reduction: fully insulated cabinet and QuieTech noise reduction
  • Recommended controls: Performance Edge® relative humidity or ComfortZoneTM II thermostats
CAPACITIES
  • 40,000-120,000 Btu/h
INSTALLATION
  • Flexible installation: upflowdownflow or horizontal
  • Versatile venting for tight-fit applications
REQUIREMENTS
  • 115 V
  • .5″ gas connection
  • Convertible to Liquid Propane (LP)
AESTHETICS
  • 20-gauge, galvanized steel with appliance finish
  • Baked on urethane base coat and polyester top coat paint in taupe metallic
  • Dimensions in upflow position: 35″H x width varies by size: 14.2-24.5″ x 30″D
