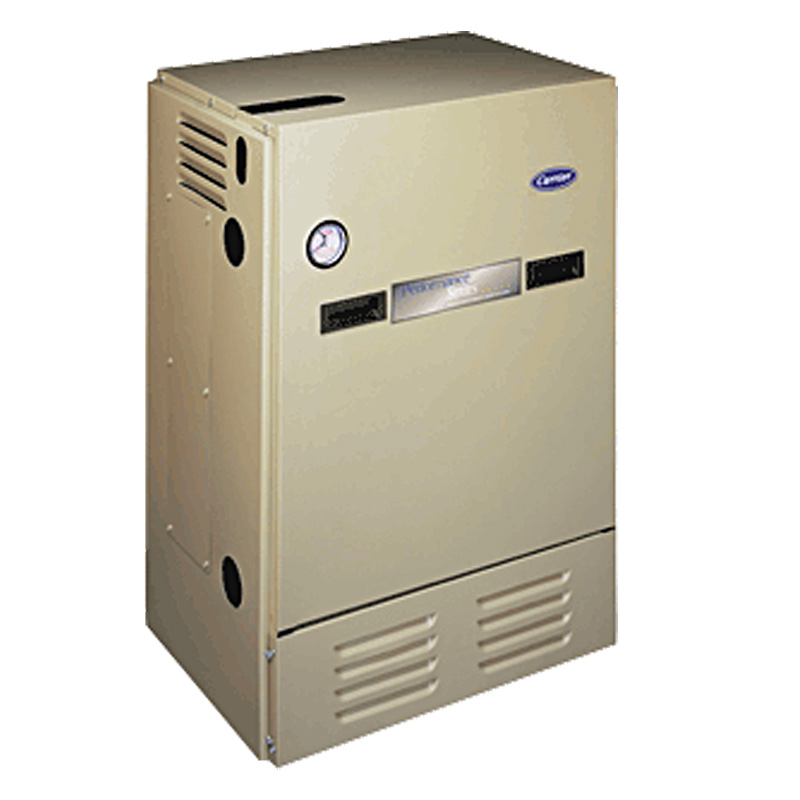

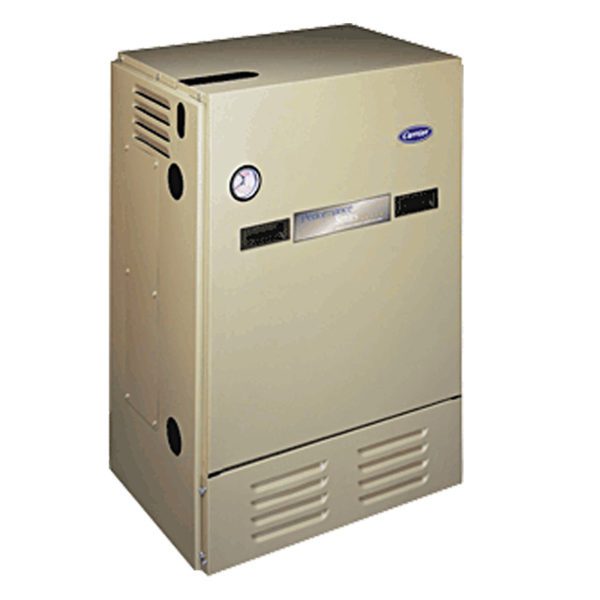

PERFORMANCE™ 90 GAS-FIRED BOILER BW9

The Performance 90 Boiler provides comfort in your radiant heat system. With a high- performance aluminum heat exchanger that drives the AFUE rating up to 90%, this is a higher efficiency heater

90% AFUE heating efficiency
Gas-fired
Integrated boiler control
Cast-aluminum heat exchanger
Optional PVC pipe installation
15-year parts limited warranty on heat exchanger
5-year parts limited warranty

EFFICIENCY

90% AFUE
Meets ENERGY STAR^® qualifications

PERFORMANCE

Rated heating output
45,000-90,000 Btu/h
Gas-fired, hot-water output
Sealed combustion

TECHNOLOGY

Cast-aluminum heat exchanger
Stainless steel burners
Dependable, hot surface ignition
Single-stage gas valve
Integrated boiler control
Low-water cutoff (some model sizes)
Integrated pressure relief valve
Direct vent
Propane convertible
Recommended controls: Performance™ and Comfort™ series thermostats

CAPACITIES

45,000-90,000 Btu/h Btu/h

INSTALLATION

Flexible installation: upflow, downflow or horizontal
Versatile venting for tight-fit applications

REQUIREMENTS

Power source: 110-125v

AESTHETICS

Painted, steel outer casing in taupe metallic
Dimensions: 40.5″H x 28″W; depth varies by size: 19.75″-32.3″
