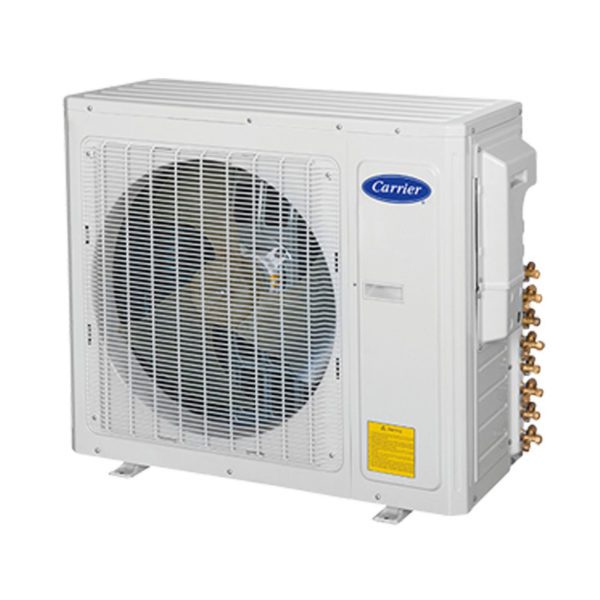

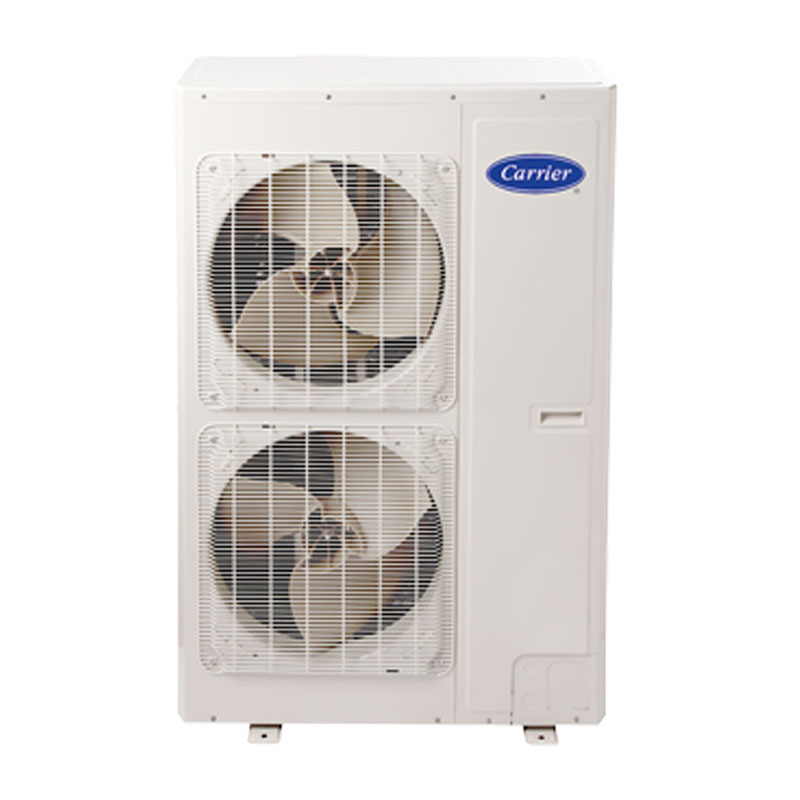

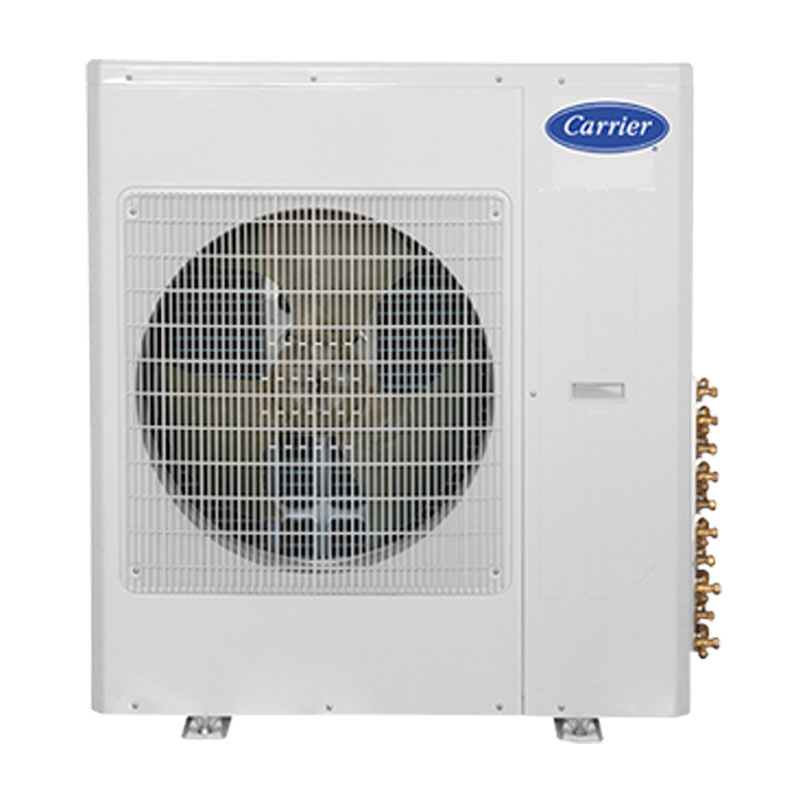

INFINITY® MULTI-ZONE HEAT PUMP 38GJQ

This flexible multi-zone heat pump can be used to serve a single room or your entire home. As part of the GJ System, it can provide cooling for those hot summer days and warmth the rest of the year while temperatures remain above -4° F.

As a multi-zone, you can use up to nine multiple style indoor units supported by just this one efficient, outdoor variable-speed compressor unit. For quiet comfort in a small or large space application, it can’t be beat.

  • Inverter Compressor
  • Up to 22.0 SEER cooling efficiency
  • Up to 10.2 HSPF heating efficiency
  • Available in 208/230V
  • Built-in basepan heater
  • Total piping length 66-476′ depending on unit capacity
  • Connects two to nine indoor units (zones) off a single outdoor unit
  • Multiple style indoor units (Infinity® Series)
  • Quiet outdoor sound operation, as low as 56 decibels
  • System diagnostics
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
  •
EFFICIENCY
  • Up to 22.0 SEER
  • Up to 12.5 EER
  • Up to 10.2 HSPF
  • Select sizes are ENERGY STAR® certified based on indoor unit pairing
PERFORMANCE
  • Outdoor sound: as low as 56 decibels
OUTDOOR OPERATING RANGE
  • Cooling mode Min-Max DB: 0° ~ 119° F (-18° ~ 48° C)
  • Heating mode Min-Max DB: -4° ~ 75° F (-20° ~ 24° C)
LINE LENGTH
  • Up to 476′
TECHNOLOGY
  • Inverter Compressor
  • Voltage and current protection
  • Sound reduction: isolated compressor
  • Diagnostics intelligence
CAPACITIES
  • 1.5 ton – 4.6 tons
REQUIREMENTS
  • 208/230V
AESTHETICS
  • Heavy-gauge, galvanized steel construction
  • Primed and coated with a 100% coverage, baked-enamel finish in white
