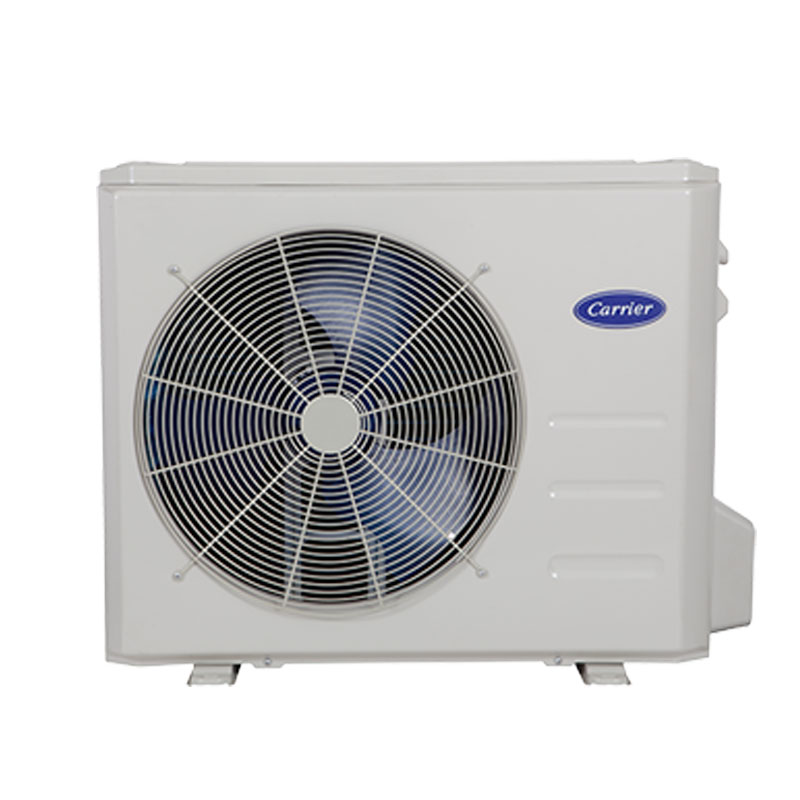

INFINITY® HEAT PUMP WITH BASEPAN HEATER 38MPRA

There’s nothing more efficient, when paired with the 40MPHA indoor unit, this system has SEER rating at 42 with 15 HSPF, making it ENERGY STAR® certified. The new, ultra-efficient 38MPRA outdoor unit with built-in basepan heater offers year-round comfort. Its impressive cooling operating range maintains consistent capacity from -22° F to 122° F. On the other end of the spectrum, the systems high heating capability is exceptional, running 100% to -22° F to 86° F temperature range. No matter the temperature outside, this system can handle the extremes.

  • 100% Heating Capacity at 0° F (-17° C)
  • 100% Cooling capacity at -22° F (-30° C) without additional kit
  • Up to 75% of Heating Capacity at -22° F (-30° C)
  • Inverter Compressor
  • Up to 42.0 SEER cooling efficiency
  • Up to 15.0 EER heating efficiency
  • Available in 208/230V
  • Sizes: 09 / 12
  • Built-in basepan heater
  • Auto-restart function
  • Refrigerant leakage detection
  • Quiet outdoor operation, as low as 55 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration
EFFICIENCY
  • Up to 42.0 SEER
  • Up to 15.0 EER
  • Up to 15.0 HSPF
PERFORMANCE
  • Outdoor sound: as low as 55.5 decibels
  • OUTDOOR OPERATING RANGE
  • Cooling operating range -22° ~ 122° F (-30° ~ 50° C)
  • Heating operating range -22° ~ 86° F (-25° ~ 30° C)
LINE LENGTH
  • Piping length 98 ft (30m)
TECHNOLOGY
  • Inverter Compressor
CAPACITIES
  • 0.75 – 1.0 Ton
REQUIREMENTS
  • 208/230V
AESTHETICS
  • Heavy-gauge, galvanized steel construction
  • Primed and coated with a 100% coverage, baked-enamel finish in white
