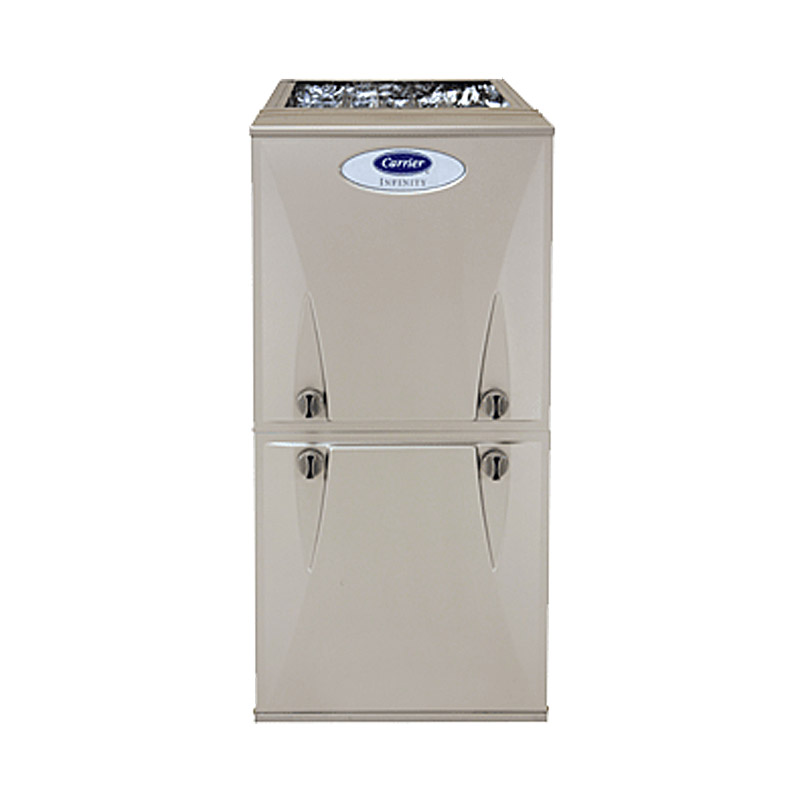

INFINITY® 96 GAS FURNACE 59TN6

Backed by the intelligent Infinity control and a variable-speed blower, this furnace will run in low stage up to 90% of the time. Longer, low-stage run times give you better energy efficiency, better temperature control and increased comfort. It also assures you quieter performance.

Variable-speed blower operation also aids other system components and can help make your air conditioning system more efficient and improve summer dehumidification.

  • Up to 96.7% AFUE heating efficiency
  • Two-stages of heat for economical operation
  • Variable-speed, ECM blower motor for ultimate comfort and ultra-quiet operation
  •  Ideal Humidity System® technology capable to aid heat pump or air conditioner summer dehumidification
  • SmartEvap technology works in concert with your cooling system to aid summer dehumidification
  • ComfortFan technology allows fan-speed choices in “Constant ON” mode
  • Comfort Heat Technology® feature intelligently stages heating cycles to reduce temperature swings and improve efficiency
  • Infinity intelligence enables self-configuration and easy troubleshooting with Infinity control
  • Fully insulated cabinet
  • Advanced temperature control
  • Includes air filter cabinet
  • 10-year parts limited warranty1
  • Lifetime heat exchanger limited warranty2
EFFICIENCY
  • Up to 96.7% AFUE
  • Select sizes meet ENERGY STAR® qualifications
  • Highest degree of electrical efficiency among Carrier furnaces
PERFORMANCE
  • Low stage operation up to 90% of time for quiet, energy-efficient operation
  • Allows 4 choices of “constant ON” fan speed operation
  •  Hybrid Heat® compatible
  • Exceptional year-round humidity management when installed as part of complete Infinity system with added humidifier
  • Can help boost cooling SEER efficiency when matched with appropriate cooling system components

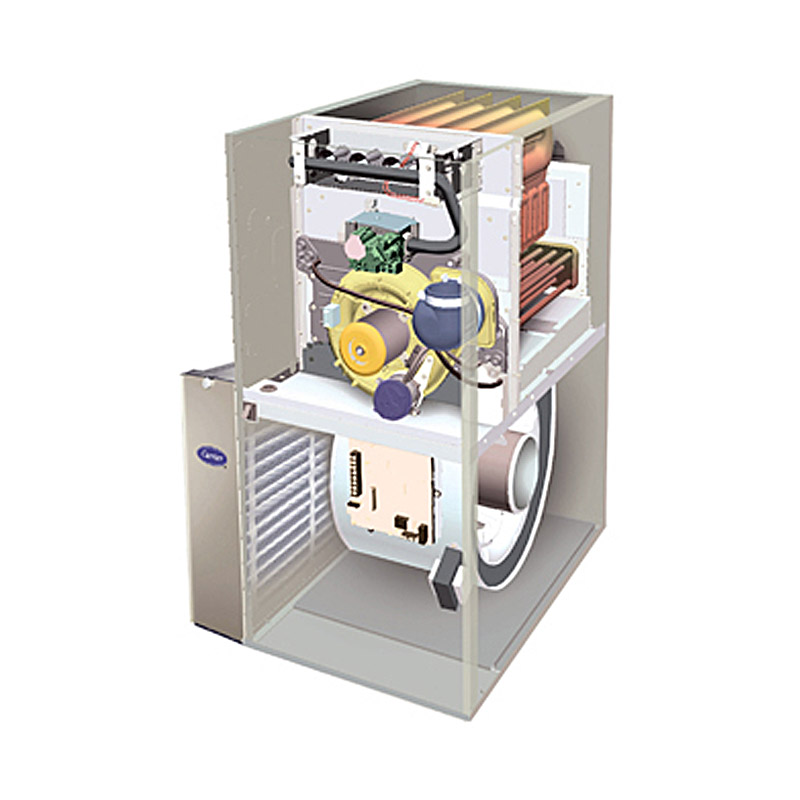

TECHNOLOGY
  • Two-stage gas valve
  • Variable-speed, ECM blower motor
  • Pilot-free, hot surface PowerHeat ignition
  • Two-speed inducer motor
  • Aluminized steel clamshell-style primary heat exchanger
  • Stainless steel fin-and-tube design secondary heat exchanger
  • Sound reduction: fully insulated cabinet and QuieTech noise reduction
  • Infinity level advanced diagnostic intelligence
  • Recommended control: Infinity control
CAPACITIES
  • 60,000-120,000 Btu/h
INSTALLATION
  • Flexible installation: upflow, downflow or horizontal
  • Versatile venting for tight-fit applications
REQUIREMENTS
  • 115 V
  • .5″ gas connection
  • Convertible to Liquid Propane (LP)
AESTHETICS
  • 20-gauge, galvanized steel with appliance finish
  • Baked on urethane base coat and polyester top coat paint in taupe metallic
  • Dimensions in upflow position: 35″H x width varies by size: 17.5-24.5″ x 30″D
